Innovate Filtration System
Precision Filtration System
SK-1S/1C
Keeps water-soluble machining fluids consistently clean.
A cost-effective entry-level model
with precision filtration that lowers production costs.
Reduces costs through structural redesign
while using high-performance filter paper.
Filtration speed for SK-1C (Cascade pump model): 20L/min
SK-1S (Submersible pump model):
40L/min (maximum)
Easily removable via slider and completes filter replacement with one touch.
SMK’s precision filtration technology
offers cost reduction
with a simple mechanism
and can be installed
in existing tanks.
High filtration precision eliminates the need for sludge cleaning and other maintenance in coolant tanks.
It also prevents dirty waste fluid from spreading, keeping the worksite clean. Custom designs are available based on factory layout and required processing capacity, including the number of filters and tank construction.
Single Coupler
One-touch coupler detachment significantly reduces the time required for filter replacement.
1
Slider Mechanism
Allows used filters to slide for easy removal, reducing the burden during replacement.
2
Land and Submersible Pumps
Pumps can be selected according to the application.
3
Anchor Fix Compatible
Anchors can be used for secure fixation, preventing tipping and ensuring safe usage.
4
Equipped with Casters
The caster-equipped frame allows flexible layout and easy connection to existing tanks.
5

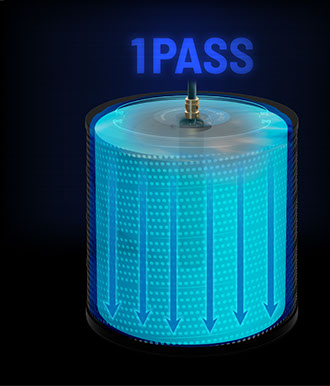

1PASS
high-speed filtration
equipped with
the CP303J filter
for water-soluble coolants.
Utilizes 0.5μ high-performance fiber filter paper for high-speed filtration. Filtration speeds are 20L/min for SK-1C and 40L/min (maximum) for SK-1S.
The process is completed in one pass, ensuring very fast operation.

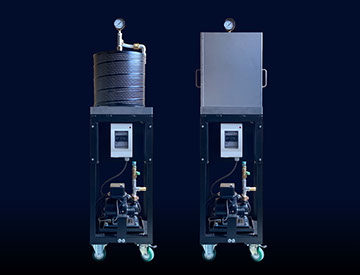

SK-1S
Submersible
Pump Model
SK-1C
Cascade
Pump Model

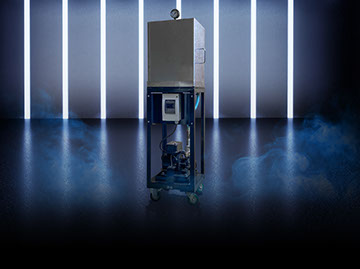

Photo / SK-1C (Cascade Pump)
Equipped with a stainless steel cover to prevent splashes
Innovate Filtration System
Precision Filtration System
SK-1S/1C
SK-1C
Dimensions (L×W×H mm)
350×350×1250
Approx. 55kg
Weight
20L/min
Processing Flow Rate
1
Number of Filters
Utility
Single-phase 100V
Pump Type
Cascade Pump
SK-1S
Dimensions (L×W×H mm)
350×350×1250
Approx. 55kg
Weight
40L/min
Processing Flow Rate
1
Number of Filters
Utility
Single-phase 100V
Pump Type
Submersible Pump
Please note that housing specifications (color and size) are subject to change without prior notice.
Processing flow rates may vary depending on usage conditions. Thank you for your understanding.

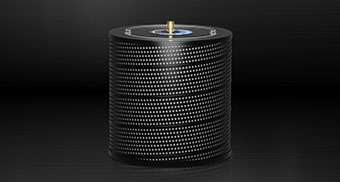

Innovate Filtration System
Precision Filtration Filter
CP303J
Dimensions (mm)
φ300×H300
Approx 5kg
Weight
3μm
Filtration Speed
Water-Soluble Coolant
Compatible Machining Fluid
