Ion exchange resin System for WEDM
SMART RESIN
Ion Exchange Resin System
for Wire Electrical
Discharge Machining
Pure Water Purification Innovation:
Stationary Bottle System
with Bagged Ion Exchange Resin
A revolutionary Smart Resin Bag designed as a stationary bottle type.
Its groundbreaking exchange method surpasses traditional bottle exchange systems in both convenience and cost performance.
Bagged and Stationary Type
Ion Exchange Resin System

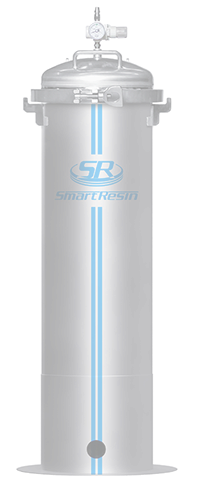

SMK's Smart Resin System is a stationary bottle-type ion exchange resin system. By utilizing approx. 7kg bagged ion exchange resin, it enables large capacity without handling heavy items. This innovative system reduces the burden of replacement and shipping in conventional bottle exchange methods and minimizes the risk of bottle tipping, providing universal usability for anyone.
Invention
Name
Patent
Number
International Patent Number
Ion Exchange Bag
and Ion Exchange Device
Patent No. 6449513
PCT/JP2019/25664
Invention
Name
Patent
Number
International Patent Number
Ion Exchange Bag
and Ion Exchange Device
Patent No. 6449514
PCT/JP2019/25665
Innovative Smart Resin Bag
That Made Innovation Possible
The Smart Resin Bag adopts a mesh material with excellent water permeability and durability. It is lightweight and strong enough for repeated use, with an average weight of 7kg per bag. Unlike conventional bottle exchange systems, which required replacing entire 30kg bottles, Smart Resin allows for easy handling and replacement of smaller bags, making it accessible even for women and elderly users.
One-Touch Easy Replacement,
Quick and Complete Exchange
Replacing the Smart Resin Bag is as simple as opening the bottle lid and inserting the bag. The bottle's inner surface is mirror-finished, ensuring smooth and seamless insertion. Used bags can also be easily removed with one hand.
Equipped with a Drain Valve
for Easy Operation
The water draining process during Smart Resin Bag replacement is as simple as inserting an air hose and opening the valve, allowing for effortless and hassle-free operation.
Installation Base
Diameter
Safe and Secure Design
with Space Efficiency
As a stationary bottle system, it eliminates concerns about connector wear, transport accidents, and damage during repeated bottle exchanges. It also alleviates fears of water leakage during unattended operation. Without needing to move the bottle, it can be installed even in tight spaces as long as sufficient maintenance space is available.
Water Flow Structure
Maximizing Ion Exchange
Resin Efficiency
SMK's Smart Resin System improves ion exchange efficiency significantly by directing water flow in one direction. In addition to increased capacity, it reduces the frequency of tedious replacement tasks, contributing to enhanced production efficiency.
Ion exchange resin System for WEDM
SMART RESIN
Ion Exchange Resin System
for Wire Electrical
Discharge Machining
System Specifications
Dimensions (L×H mm)
Φ260 (Installation Base Diameter Φ388) × 1,013
Maximum/Minimum Operating Pressure (Mpa)
0 – 0.25
Maximum/Minimum Operating Temperature (℃)
0 – 40
Capacity (L)
43
Weight (kg)
21
Maximum Filling Weight (kg)
60 (When Storing Resin Bags)
Bag Specifications
Ion Exchange Resin Capacity (L)
8
Weight (kg)
Approx. 7.0
