A completely new filtration system continues to evolve
Equipped with two ultra-precision filters in a stylish housing, this flagship model thoroughly pursues operability and ease of filter replacement.
This completely new filtration system not only improves machining accuracy and extends machine lifespan but also contributes to significant cost reduction, reduced environmental impact, and improved working conditions.
SMK
PRODUCT
LINEUP
SMK's Flagship Model,
Uniting Its Filtration Technology
The SMK RAPTOR is the flagship model, packed with filtration technology developed by SMK, a specialist in solid-liquid separation. It brings 'amazement' with its speed and 'delight' with its precision, consistently inspiring those who use it. Meeting demands to reduce damage to products and machine tools, it continues to evolve, embodying the ideal filtration solutions. With advancements into IoT, such as monitoring filtration conditions and enabling proper management, the SMK RAPTOR constantly expands into new territories.
World's First Double-Coupler
System Filter Equipped
This is a completely new filtration system that combines the best features of conventional internal and external pressure filters. By adopting the world's first 'Double-Coupler System' filter, this groundbreaking device not only enhances machining accuracy and extends the lifespan of machinery but also significantly reduces costs, lowers environmental impact, and improves working conditions.
(Patent No. 6133145)
1PASS High-Speed Filtration,
Compatible with Both Oil-Based
and Water-Based Liquids
By adopting newly developed high-performance fiber filter paper, this system achieves ultra-precision filtration. It is compatible with both oil-based and water-based liquids. The filtration speed is 40L/min for water-based liquids and 30L/min for oil-based liquids. The process is completed in one pass, ensuring extremely fast operation.
Filtration Speed (with Two Installed Filters)
Water-Based Liquids
Oil-Based Liquids
Grinding
Oil
Compatible Oil Types
Water-Soluble Grinding
and Cutting Fluids
Water
Glycol
Fatty Acid
Ester
Mineral
Oil
Dielectric
Oil
Achieves ultra-precision filtration and extended filter life simultaneously.
The precision filtration filter 'FWC' captures fine sludge particles as small as 3µm without the need for filtration aids to prevent clogging, while simultaneously extending filter life. By continuously filtering machining fluids and working oils, it significantly reduces the volume of waste liquids and waste oils. At the same time, it lowers the costs of purchasing new fluids and oils, drastically cutting running costs. Additionally, reducing the use of new fluids and oils contributes to lower CO2 emissions during production. It also improves machining quality by eliminating tool chipping caused by sludge and extends the lifespan of consumables.
Convenient, Safe, and Fast
Reduces workload
with one-touch replacement
Creates a clean working environment
The housing with a sliding mechanism allows easy access to the filter. The FWC filter features an integrated case design, enabling one-touch replacement without liquid splashes or the need for sludge cleaning, keeping the worksite impressively clean. In the event of an issue where the pressure inside the filter housing exceeds a certain limit or a liquid leak occurs, sensors detect the abnormality and automatically stop operation. Even if a leak happens, the housing is designed to prevent liquid from escaping externally.
User-Friendly Control Panel
with Advanced Monitoring

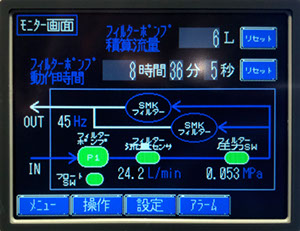

The touch-operated control panel allows you to manage and monitor the following.By monitoring flow rate and filter pressure, you can determine the filter’s lifespan.
Pump Status
(Normal or Error)
Float Sensor
(Leakage Monitoring)
Flow Sensor
(Flow Rate Monitoring During Use)
Filter Pressure
Innovate Filtration System
Precision Filtration System
SMK RAPTOR
Dimensions
(L×W×H mm)
1,081×500×1,310
Processing Flow Rate (L/min)
10 - 40
Utility
Single-Phase 100V / Three-Phase 200V
Number of Filters
Weight
(kg)
2
90
Standard accessories include 3m hoses for both IN and OUT, along with an automatic shutdown feature.
*Please note that the processing flow rate may vary depending on contamination levels and the kinematic viscosity of the oil.
*Specifications are subject to change without prior notice. Thank you for your understanding.
